Equipment Type
Before adding an equipment for monitoring, you need to create a equipment type first.

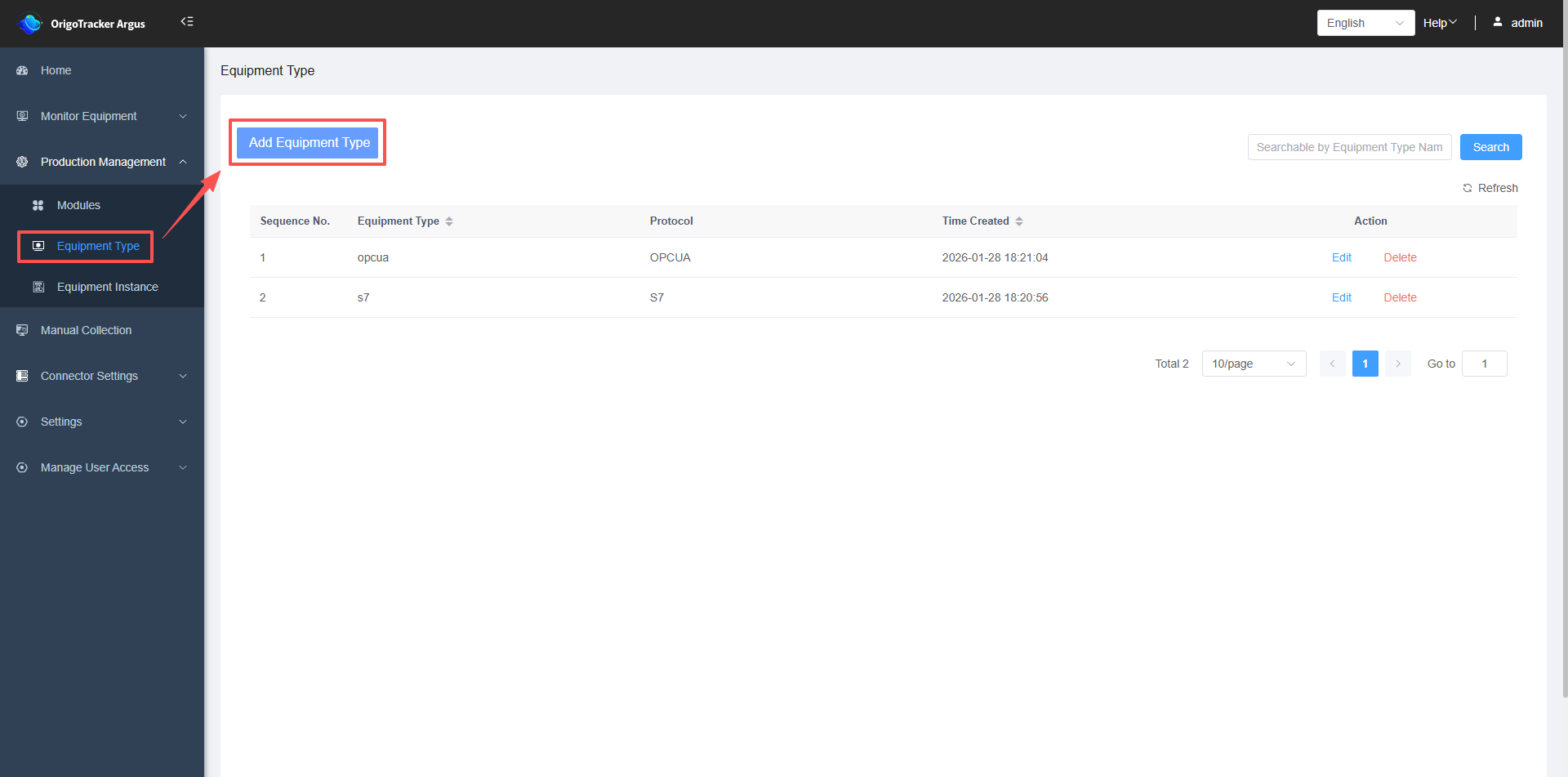

(1) Click on "Equipment Types".

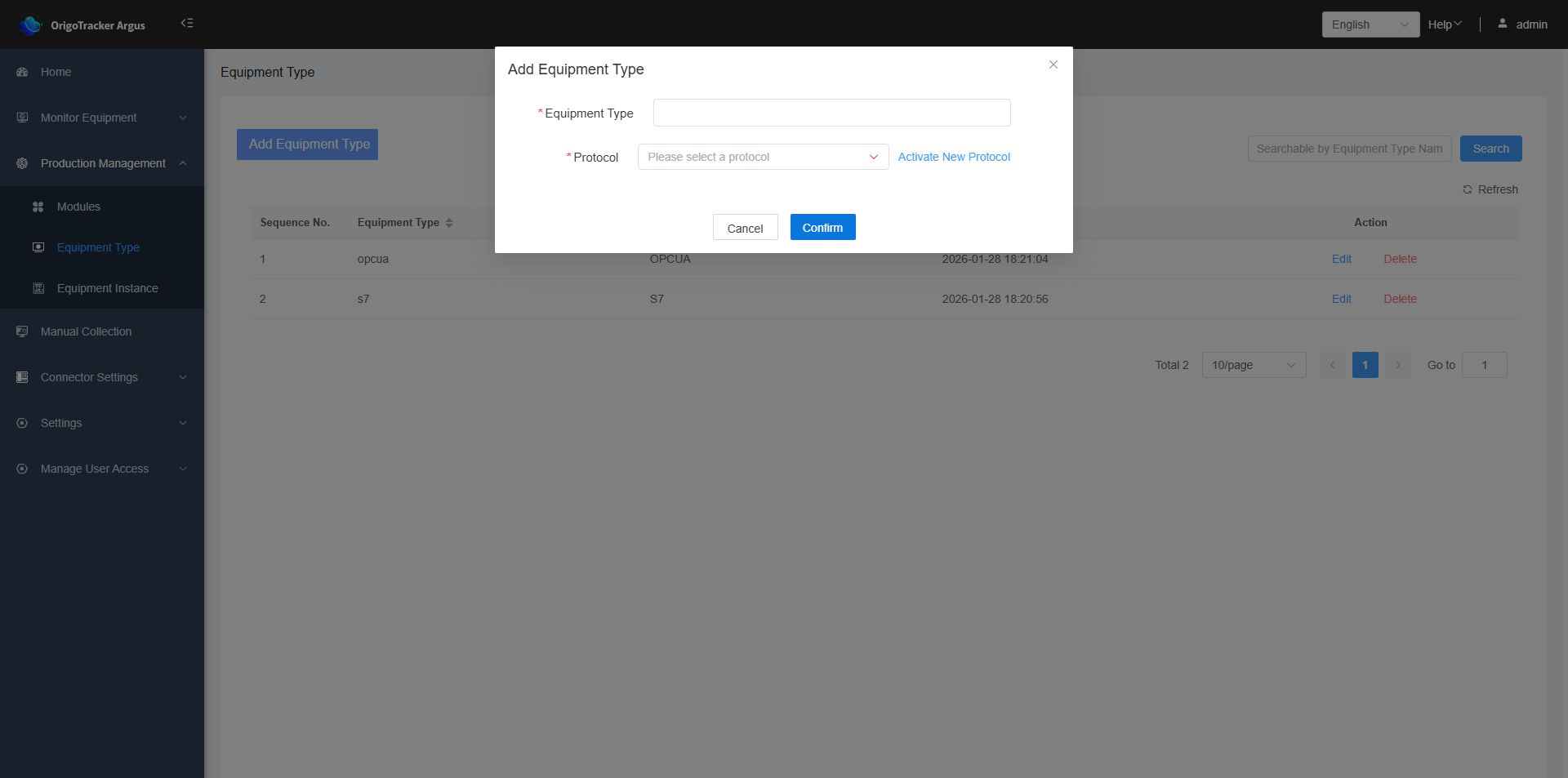

(2) Click "Add equipment Type".
| Field | Description |
|---|---|
| Equipment Type | It is recommended that you classify equipment based on their type and the PLC protocol they use. For example: among 10 equipment, there are 8 press machines and 2 ovens. Out of the 8 press machines, 3 machine use PLCs with Protocol A, while the others use Protocol B. Both ovens use PLC with Protocol A. In this case, the equipment types would be "Press with Protocol A," "Press with Protocol B," and "Oven with Protocol A." This approach helps better manage subsequent automated data collection. |
| Protocol | The communication protocol of the PLC for equipment under this device type. |
| Activate New Protocol | If the protocol you need is not available in the list, you can click this button and activate newly purchased protocol. |
Activate New Protocol

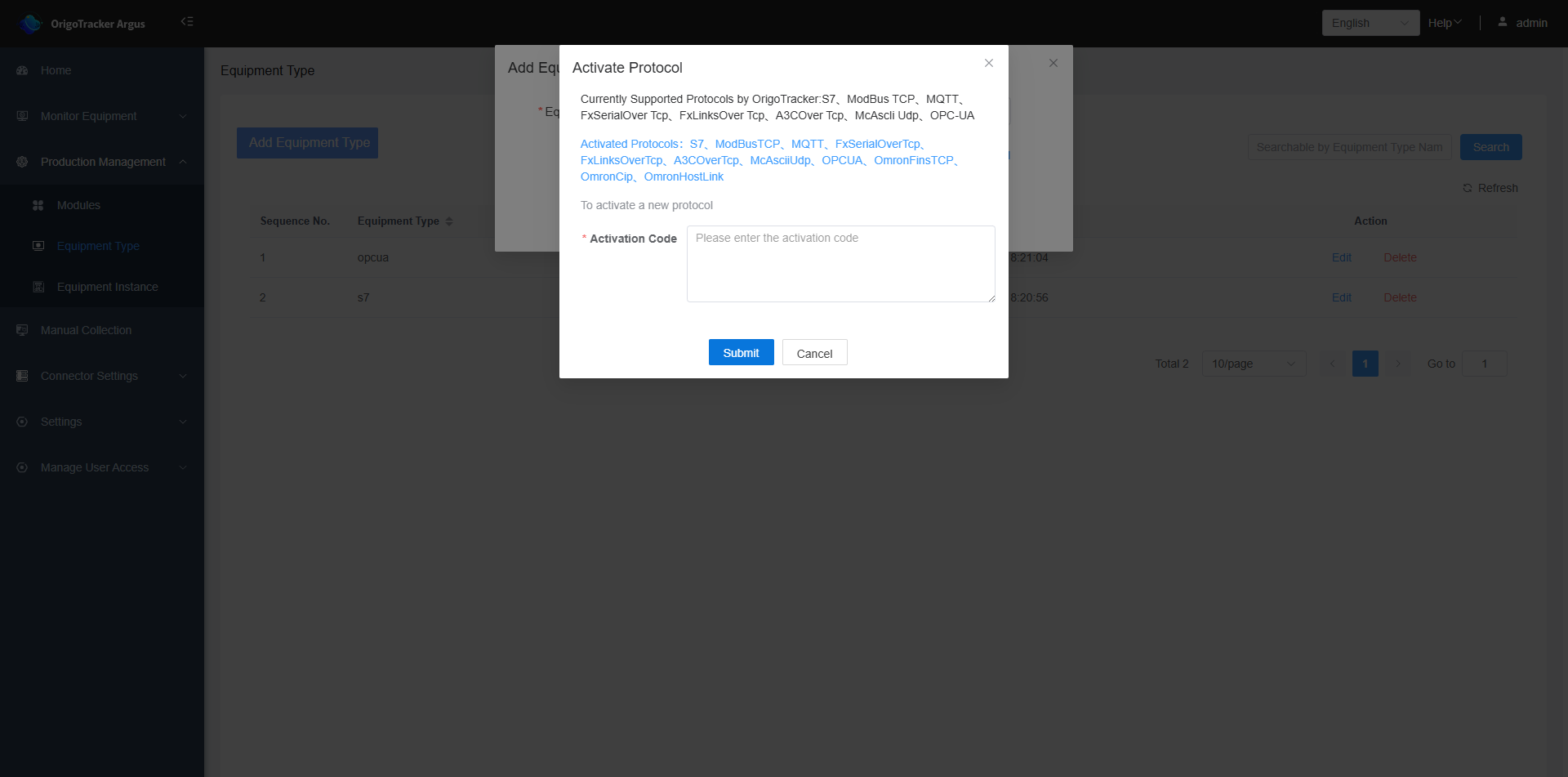

Click “Acitvate New Protocol”, the activation pop-up window is appeared.
If you wish to activate a new protocol, please contact our customer service.
If you have already communicated with our customer service, enter the activation code in the input box to activate the new protocol.
